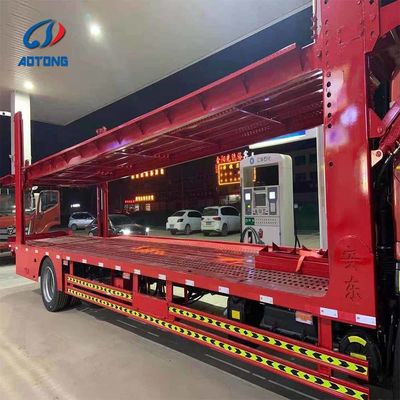

3-Axle 13T Car Carrier Semi Trailer with 500mm Main Beam

МОК:	1 единица
стандартная упаковка:	Экспортный стандарт
Срок доставки:	25 дней
способ оплаты:	T/T.

Подробная информация

Описание продукта

Подробная информация

Место происхождения

Китай

Фирменное наименование

AOTONG

Сертификация

ISO,CCC

Приостановка:

Механическая или воздушная подвеска

Технические характеристики шин:

12R22,5

Главный луч:

Сверхмощный I Beam.

Родственная булавка:

2 ''/3.5 '' тип болта

Тормозная система:

Двойная воздушная камера, тормозный клапан, 45L воздушные резервуары; АБС.

Электрический:

Светодиодный свет, 7 способов, 24В

Рисование:

Взрывные и чистую ржавчину, 1 слой первичной живописи, 2 слоя финишной картины

Выделить:

13T car carrier semi trailer

3-axle lowbed semi trailer

500mm main beam trailer

Описание продукта

Details Images

Trailer Model

car carry trailer

Overall Dimension(L x W x H)(mm)

20000×2600×4200mm

capacity

10 - 12 units vehicles

Axle Brand

13T×3pcs

Axle Number

Three

Axle load

13000kg X 3

Suspension system

Standard Mechanical suspension

The material of Main beam

The height of the beam is 500 mm, top 10mm,middle 6mm,bottom 12mm;T700 high strength steel

Tire Type and quantity

Chinese brand Tire 12R22.5

6 pcs.

rim

9.0×22.5

Traction Pin

2",diameter 50.8 mm ,loading 16 ton

Tool Box

1 Standard

Landing Gear

standard 28 ton

Electrical system

1. Voltage: 24v

2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core standard Cable.

Color

According to customer's requirement

Packing

Polish with wax before shipping

Noted

1.Top platform can be adjusted up and down by hydro-cylinder and chain block, totally 4 pcs of cylinder in each trailer

2. The roof of trailer can be down about 20cm.We can control by hand when go through limited high place as bridge or some thing.

3-Axle 13T Car Carrier Semi Trailer with 500mm Main Beam 0

3-Axle 13T Car Carrier Semi Trailer with 500mm Main Beam 1

Frequently Asked Questions

Does your company have your own factory?

Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.

What is your minimum order quantity?

One unit.

Can you satisfy my special requirements?

Absolutely! We can customize trailers according to your specific requirements.

What logistics methods do you offer for transportation?

We provide multiple transportation options:

Primary method: Shipping by container or ro-ro/bulk vessel
For neighboring countries: Road or rail transport
For urgent spare parts: Express shipping via DHL, TNT, UPS or FEDEX

Do you offer any additional services?

Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.

Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.

Email: juyuan@aotongtrailer.com

Phone: +86 139 6962 7783

With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.
